TCS34725 RGB Color Sensor with IR filter and White LED Arduino Raspberry Pi
£4.75
TCS34725 RGB Color Sensor with IR filter and White LED Arduino Raspberry Pi
Description

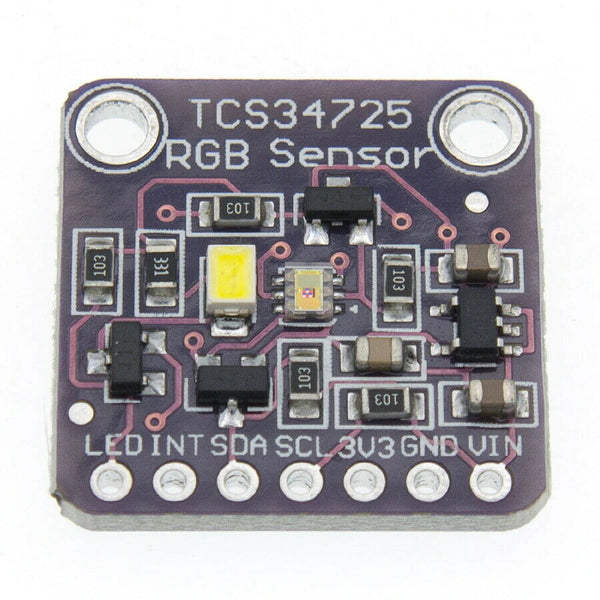

Your electronics can now see in dazzling color with this lovely color light sensor. We found the best color sensor on the market, the TCS34725, which has RGB and Clear light sensing elements. An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimizes the IR spectral component of the incoming light and allows color measurements to be made accurately. The filter means you'll get much truer color than most sensors, since humans don't see IR. The sensor also has an incredible 3,800,000:1 dynamic range with adjustable integration time and gain so it is suited for use behind darkened glass.

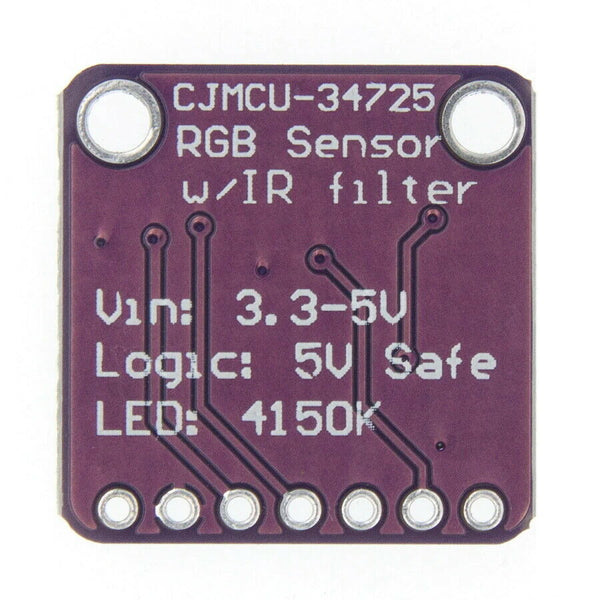

We add supporting circuitry as well, such as a 3.3V regulator so you can power the breakout with 3-5VDC safely and level shifting for the I2C pins so they can be used with 3.3V or 5V logic. Finally, we specified a nice neutral 4150°K temperature LED with a MOSFET driver onboard to illuminate what you're trying to sense. The LED can be easily turned on or off by any logic level output.
Connect to any microcontroller with I2C and our example code will quickly get you going with 4 channel readings. We include some example code to detect light lux and temperature that we snagged from the eval board software.
Technical Details
Datasheets, EagleCAD PCB files, and Fritzing library available in the color sensor tutorial
https://learn.adafruit.com/adafruit-color-sensors/downloads
Weight: 3.23g
Dimensions: 20.44mm / 0.8" x 20.28mm / 0.79"
This board/chip uses I2C 7-bit address 0x29.
Package content:

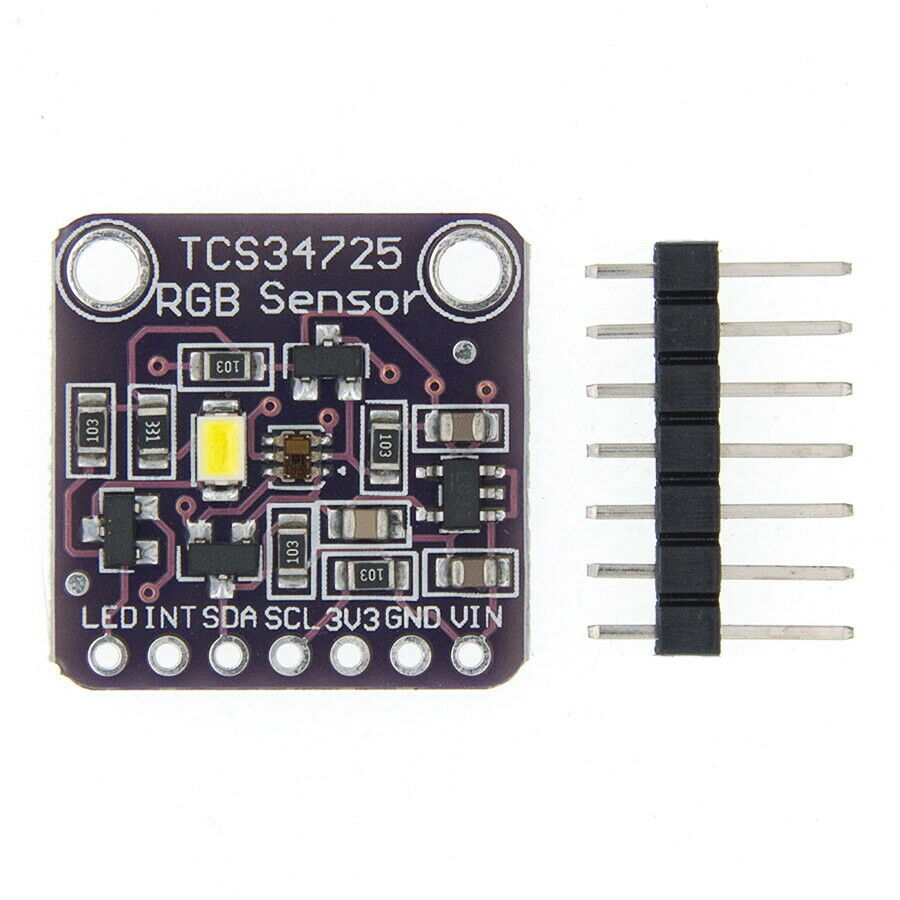

1 x TCS34725 RGB Color Sensor
UK Seller, quick dispatch
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00543
