ENC28J60 Ethernet LAN Network Module SPI Port For Arduino Raspberry Pi
£4.90
ENC28J60 Ethernet LAN Network Module SPI Port For Arduino 51LPC AVR ARM PIC
This module contains what you need to enable ethernet on your next microcontroller project. This board utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20 MHz.
It includes a ENC28J60 ethernet controller, an RJ45 socket with link/activity lights and integrated transformer. This ethernet module enables you to connect a particular Embedded device (equipped with SPI support) on to a network. By using this Ethernet module (along with a microcontroller running a small TCP/IP stack) applications like Embedded Web server can be easily developed.
Use this module to enable Ethernet interface for your product. It works with any microcontroller operating at 3.3V or 5V. This module works at 5V and is compatible with 5V interface lines. Use SPI process to interface with it. Host web server, ping the module or add it to home automation via internet. Heart of this module is ENC28J60 Ethernet controller from Microchip.

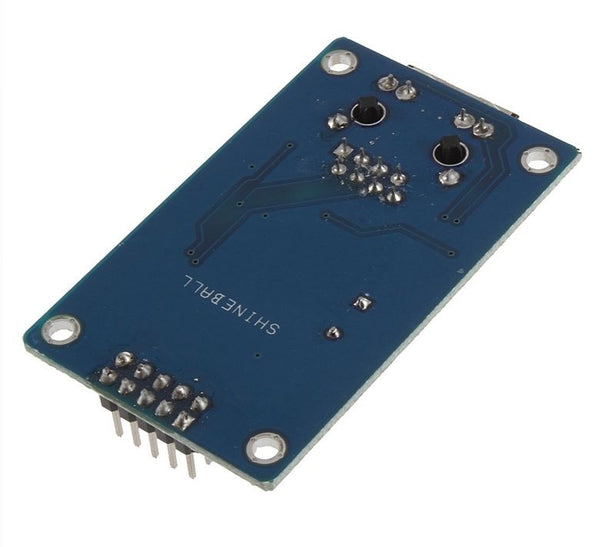

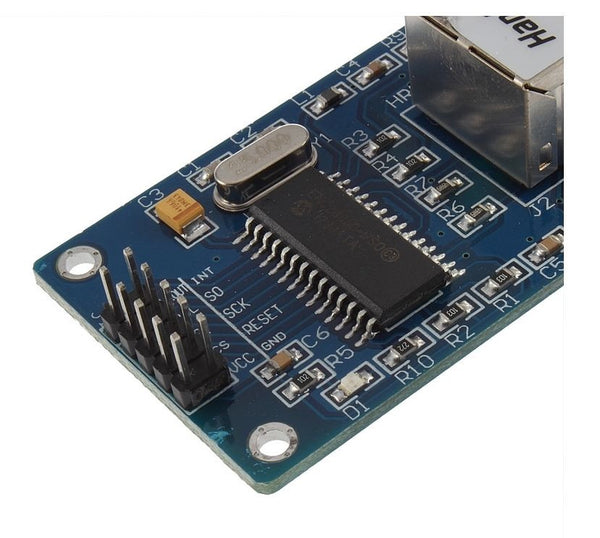

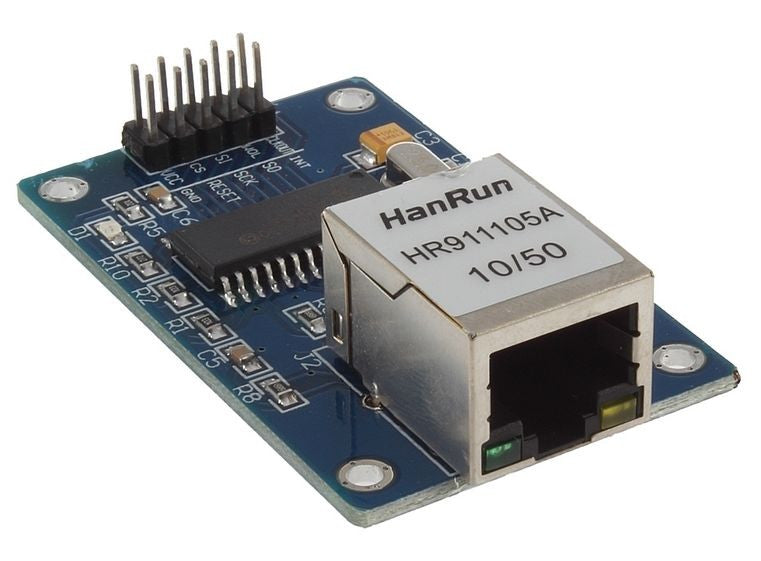

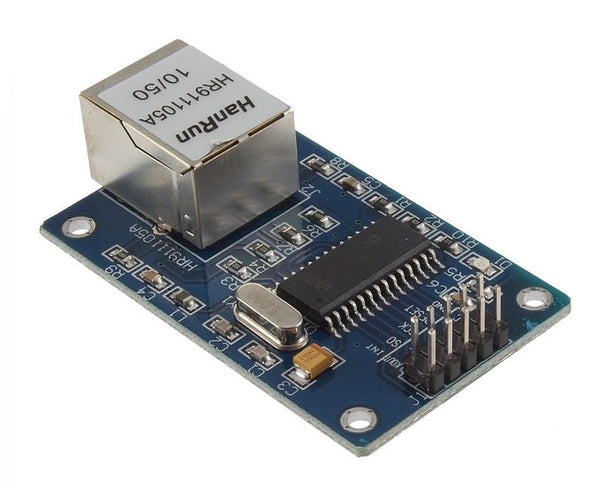

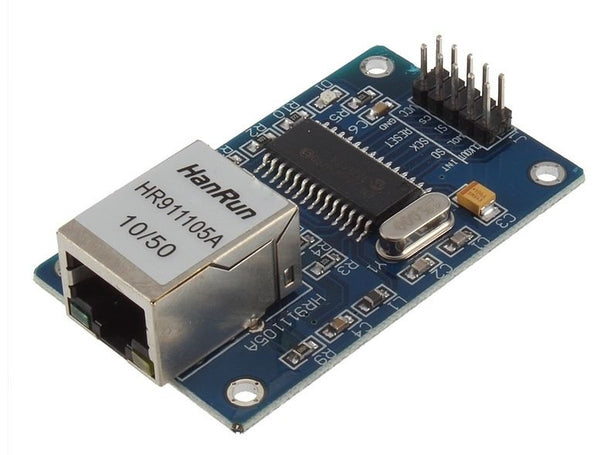

Use of RJ45 with Integrated transformer has made it possible to reduce the size of board. This board is assembled with all components as shown in the pictures below. The circuit board includes all required components for the ethernet controller, plus a 3.3V Voltage Regulator and a RJ-45 jack with integrated transformer and built-in Link and Activity LEDs for connection to an Ethernet Local Area Network.
Features
· Microchip ENC28J60 Ethernet Chip supporting Microchip’s TCP/IP protocol stack, with IPv4, UDP, TCP, DHCP, ICMP, FTP, and HTTP support
· Compatible with all controllers having an SPI interface, SPI interface takes only few pins to add Ethernet interface to your microcontroller project
· Suitable for 3.3V Interface
· LAN connector with build in transformer
· Link and Activity LED's on Ethernet connector
8 pin standard interface connector with spacing of 0.1” (2.54 mm) row pins
· IEEE 802.3 Compatible with Integrated MAC and 10Base-T PHY
· Fully Compatible with 10/100/1000Base-T Networks
· Supports One 10Base-T Port with Automatic Polarity Detection and Correction
· Supports Full and Half-Duplex modes
· Programmable Automatic Retransmit on Collision
· Programmable Padding and CRC Generation
· Programmable SPI Interface with Clock Speeds Up to 20 MHz
Application
Remote control and monitoring
Data capture and logging
Industrial Automation
Building Automation
Appliance remote management
Robotics
Microcontroller Research and Development
TCP/IP Research and Development
Specification
Board Size: 68x22mm
Operating Voltage: +3.3V DC
Current Consumption: 180mA average
Follow this link Put An Ethernet Port On Your Pi
http://raspi.tv/2015/ethernet-on-pi-zero-how-to-put-an-ethernet-port-on-your-pi
Package include:
ENC28J60 Ethernet LAN Network Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00226
This module contains what you need to enable ethernet on your next microcontroller project. This board utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20 MHz.
It includes a ENC28J60 ethernet controller, an RJ45 socket with link/activity lights and integrated transformer. This ethernet module enables you to connect a particular Embedded device (equipped with SPI support) on to a network. By using this Ethernet module (along with a microcontroller running a small TCP/IP stack) applications like Embedded Web server can be easily developed.
Use this module to enable Ethernet interface for your product. It works with any microcontroller operating at 3.3V or 5V. This module works at 5V and is compatible with 5V interface lines. Use SPI process to interface with it. Host web server, ping the module or add it to home automation via internet. Heart of this module is ENC28J60 Ethernet controller from Microchip.
Use of RJ45 with Integrated transformer has made it possible to reduce the size of board. This board is assembled with all components as shown in the pictures below. The circuit board includes all required components for the ethernet controller, plus a 3.3V Voltage Regulator and a RJ-45 jack with integrated transformer and built-in Link and Activity LEDs for connection to an Ethernet Local Area Network.
Features
· Microchip ENC28J60 Ethernet Chip supporting Microchip’s TCP/IP protocol stack, with IPv4, UDP, TCP, DHCP, ICMP, FTP, and HTTP support
· Compatible with all controllers having an SPI interface, SPI interface takes only few pins to add Ethernet interface to your microcontroller project
· Suitable for 3.3V Interface
· LAN connector with build in transformer
· Link and Activity LED's on Ethernet connector
8 pin standard interface connector with spacing of 0.1” (2.54 mm) row pins
· IEEE 802.3 Compatible with Integrated MAC and 10Base-T PHY
· Fully Compatible with 10/100/1000Base-T Networks
· Supports One 10Base-T Port with Automatic Polarity Detection and Correction
· Supports Full and Half-Duplex modes
· Programmable Automatic Retransmit on Collision
· Programmable Padding and CRC Generation
· Programmable SPI Interface with Clock Speeds Up to 20 MHz
Application
Remote control and monitoring
Data capture and logging
Industrial Automation
Building Automation
Appliance remote management
Robotics
Microcontroller Research and Development
TCP/IP Research and Development
Specification
Board Size: 68x22mm
Operating Voltage: +3.3V DC
Current Consumption: 180mA average
Follow this link Put An Ethernet Port On Your Pi
http://raspi.tv/2015/ethernet-on-pi-zero-how-to-put-an-ethernet-port-on-your-pi
Package include:
ENC28J60 Ethernet LAN Network Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00226
