USB to TTL Serial Cable for Arduino Raspberry Pi

£4.84
USB to TTL Serial Cable for  Arduino Raspberry Pi

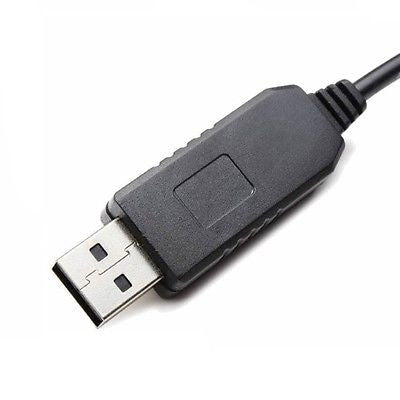

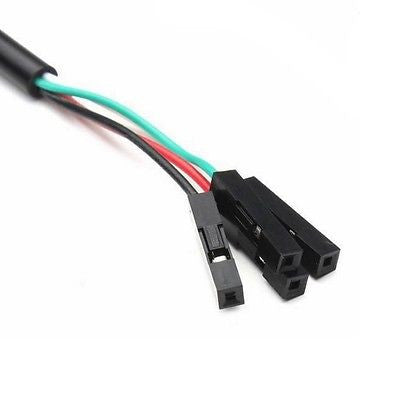

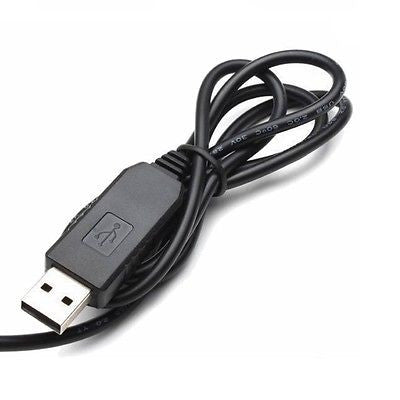

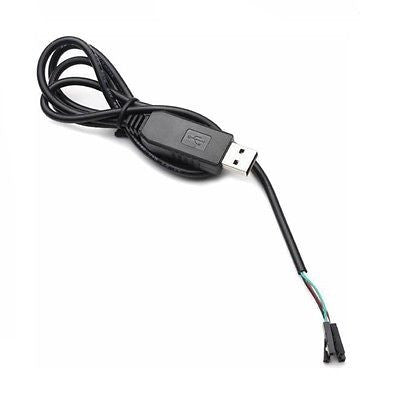

The cable is easiest way ever to connect to your microcontroller/Raspberry Pi/WiFi router serial console port. Inside the big USB plug is a USB<->Serial conversion chip and at the end of the 36" cable are four wire - red power, black ground, white RX into USB port, and green TX out of the USB port. The power pin provides the 5V @ 500mA direct from the USB port and the RX/TX pins are 3.3V level for interfacing with the most common 3.3V logic level chipsets.

Because of the separated pin plugs, this cable is ideal for powering and connecting up to the debug/login console on the Raspberry Pi or BeagleBone Black. Connect the pins as shown to power the Pi or BBB and establish the RX/TX link. Then install the Windows XP/Vista/7 or MacOS X  PL2303HX drivers on your computer and connect with a terminal program at 115200 baud. Windows 8 & 10 is now supported! If you're using Windows 7 and you have issues, try this Prolific driver version 1.013

Also handy for hacking WiFi routers to install alternate OS's, or nearly any other 3.3V logic serial port. This is easier to use than an FTDI cable in many cases because the wires are separated. Note that we call this a "TTL cable" (since that's what they're called) but technically it's CMOS logic.

This cable is not good for Arduino re-programming such as a Boarduino, MENTA, Monochron, etc. because it does not have the DTR/RTS wire necessary for initiating the bootloader reboot sequence. For that we suggest an FTDI cable or FTDI friend.



Specifications:
PL2303HX Controller Chip.
Standard USB Type A to 4 Pin TTL Connector.
Supports Windows, Linux and Mac.
Baud Rate: 75 to 128000.
Wiring:
Black: Ground.
Green: TXD.
White: RXD.
Red: VCC (5V)
Cable Length (Approx): 1m


Package Content:
1 x USB to TTL Serial Cable


UK seller, quick dispatch.
Please see my other listings for Raspberry Pi and Arduino related products.

Raspberry Pi is a Trademark of the Raspberry Pi Foundation



Product ID: EP00368
