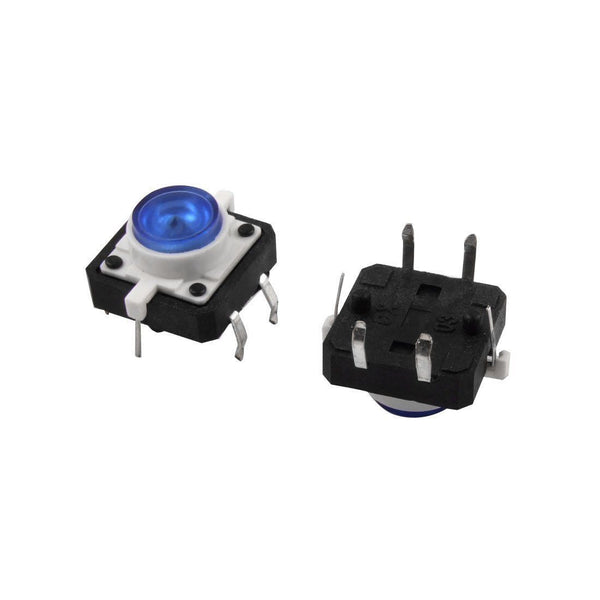

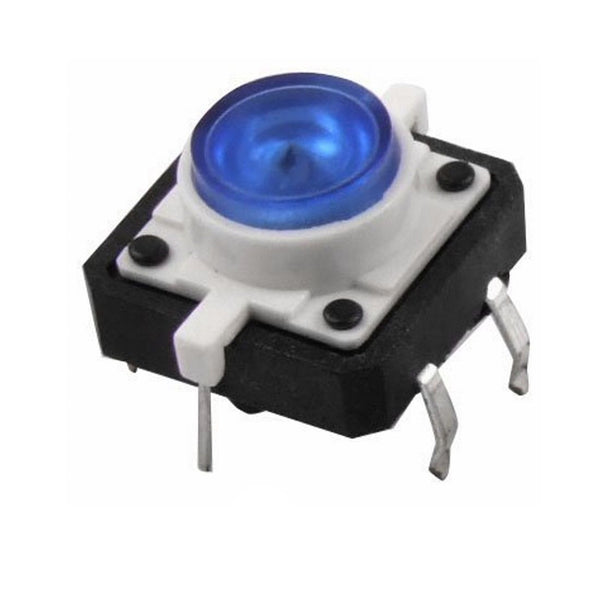

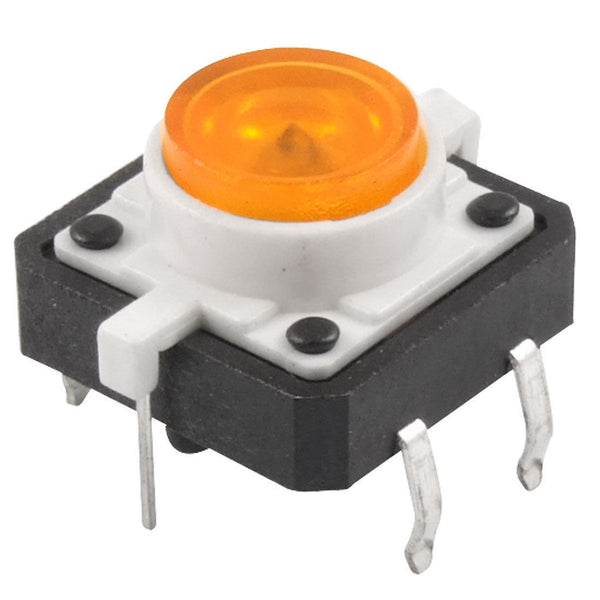

LED Lamp Momentary Tactile Push Button Switch 4 Pin PCB 12 x 12 x 7mm 5 PCS

£3.80
LED Lamp Momentary Tactile Push Button Switch 4 Pin PCB 12 x 12 x 7mm 5 PCS  MIXED


Size: 12 X 12 X 7mm
Type: 4-pin DIP Through-Hole
Max Voltage: 12V DC
Current: 50mA

PINOUT: The pin marked black is ground, the opposite pin is +ve.

CAUTION: Use the Switch within the rated voltage and current ranges (No greater than 50mA 12V DC), otherwise the switch may have a shortened life expectancy, radiate heat, or burn out. This particularly applies to the instantaneous voltages and currents when switching. Use the correct size resistor (for instance 200ohms) to avoid burn out of the LED.

Soldering: Before soldering the Switch on a multilayer PCB, test to confirm that soldering can be performed properly. Otherwise the Switch may be deformed by the soldering heat on the pattern or lands of the multilayer PCB.Do not solder the Switch more than twice, including rectification soldering. An interval of five minutes is required between the first and second soldering.

Package include:

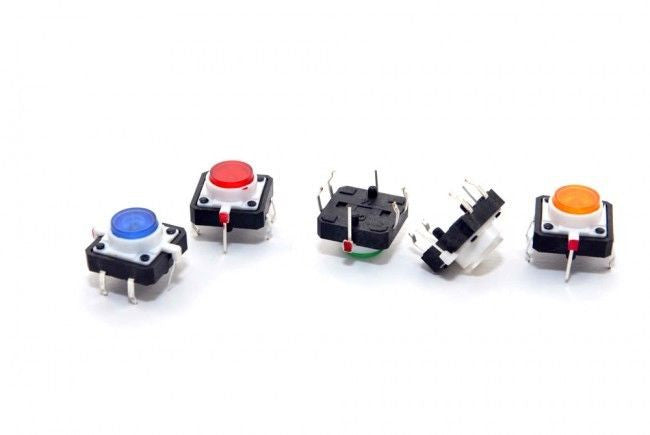

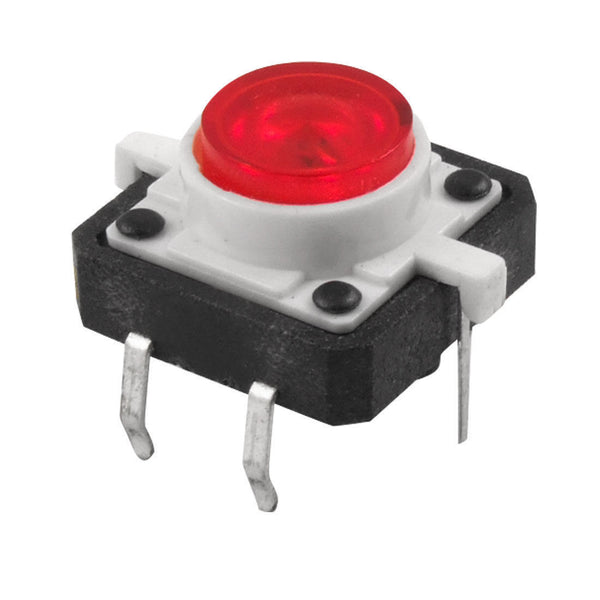

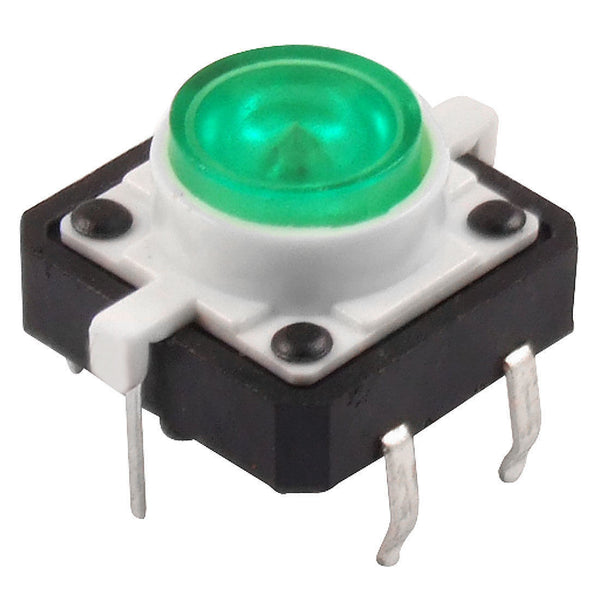

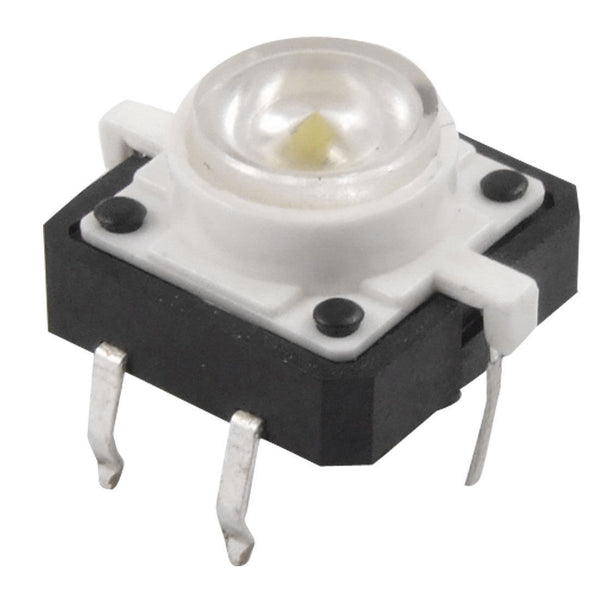

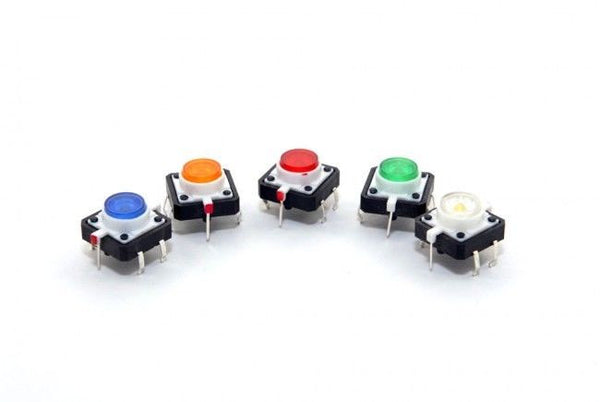

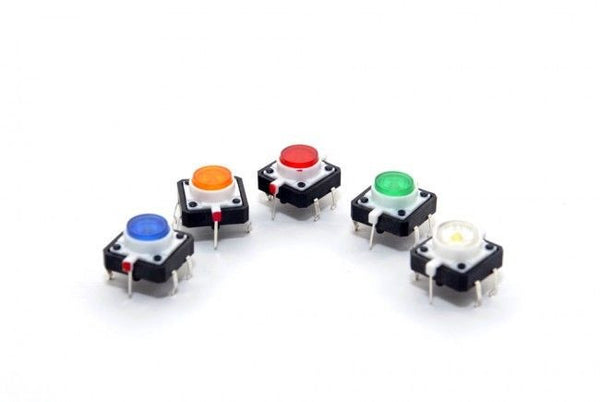

5 x LED Switch  (Red, Green, Yellow, Blue, White)

Raspberry Pi is a Trademark of the Raspberry Pi Foundation

Product ID: EP00236
