GPIO Electronic Starter Kit Resistors Switch LED 830 Breadboard for Raspberry Pi

£7.90
Raspberry Pi GPIO Electronic Starter Kit with 830 Point Quality Bread board NEW

If you want to experiment with the GPIO on the Raspberry Pi, then this kit is for you.
The kit components enables you to control LEDs, reading status of switch on your Raspberry Pi and much more.

This kit contains all the essential components, so that you can follow the many
tutorials on the internet experimenting with the GPIO on the Raspberry Pi.

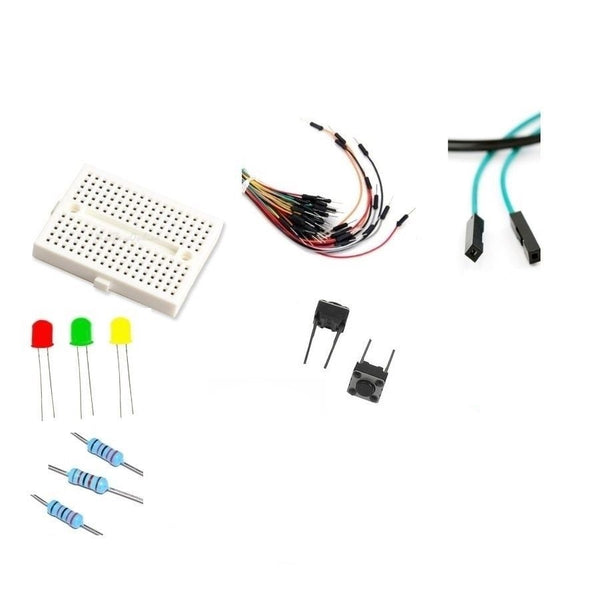

Kit contents :
1 x 830 Point Quality Bread board (82 x 53 x 8mm, 400 contacts)
MB102 Solderless Breadboard 830 Points 2 buses Circuit Bread Board Raspberry Pi
830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
White ABS plastic body with black printed legend. Color legend on distribution strips.
Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.
Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm) Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.

40 x Male - Female Jumper Cables (colour of the cables my vary from those in the picture)
65 x Male - Male Jumper Cables  (colour of the cables my vary from those in the picture)
5 x Push button switch
2 x Tilt Switch (SW-520D)
3 x 5mm Red LED
3 x 5mm Yellow LED
3 x 5mm Green LED
5x 330R resistors
5 x 1K resistors
5 x 10K resistors

UK Seller, quick dispatch. 1st CLASS POST.
Please see my other listings for Raspberry Pi and Arduino related products.



Raspberry Pi is a Trademark of the Raspberry Pi Foundation.


Product ID: EP0037
