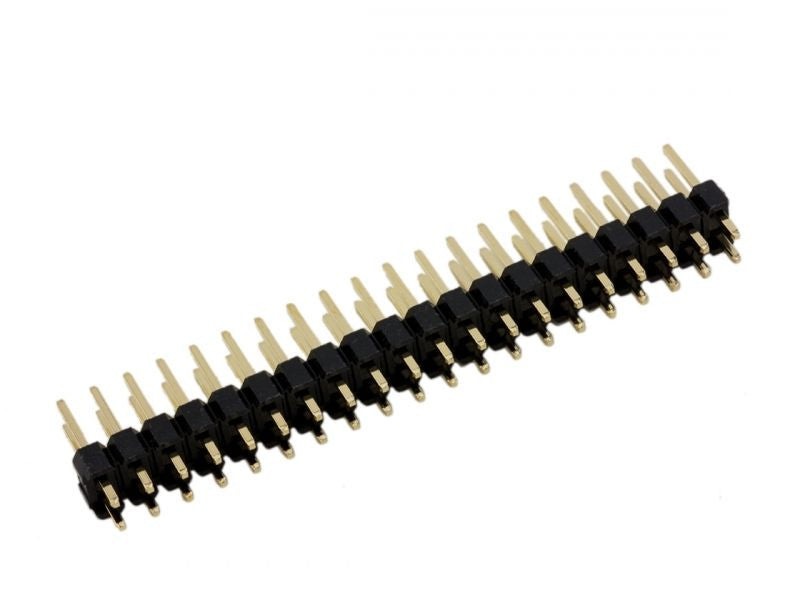

40 Pin (2 x 20) 2.54mm Male Header for Raspberry Pi Zero + Reset/TV Pins

£1.00
40 Pin (2 x 20) 2.54mm Male Header for Raspberry Pi Zero + Reset/TV Pins

This is a 40 Pin (2 x 20 row) header with 0.1" pitch designed for use with the Raspberry Pi Zero. They're great for connecting things together, soldering to perf-boards and fit into any breakout or breadboard!

These 40-pin long headers, 0.1" pitch, can be stacked next to each other on a 0.1" grid and broken apart easily with pliers or diagonal cutters.

Features:
Number of pins - 2 x 20
Male/Male (standard)
Contact resistance - Max 20 mΩ
Nominal current - 3 A
Spacing - 2.54mm (0.1")
Length - 91.4mm
Width - 5.0mm
Height - 10.8mm

Package Includes:
1 x 40 pin Male Header Extender

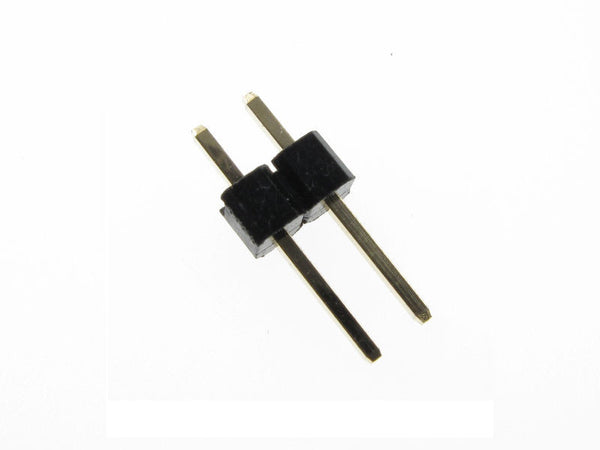

2 x 2 pin for reset switch & TV


Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00335
