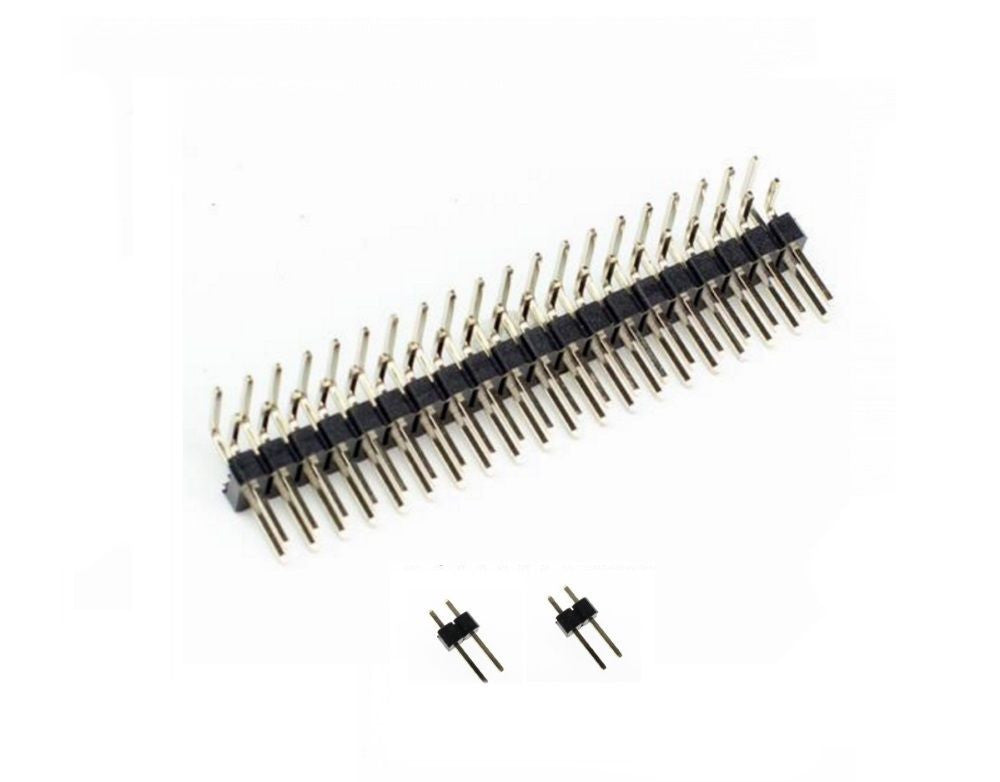

40 Pin (2 x 20) Male Right-Angle Header for Raspberry Pi Zero + Reset / TV Pins

£1.20
40 Pin (2 x 20) Male Right-Angle Header for Raspberry Pi Zero + Reset/TV Pins

This is a 40 Pin (2 x 20 row) Right-Angle header with 0.1" pitch designed for use with the Raspberry Pi Zero.

This 90° header is great for mounting inside projects at a right-angle or for routing wiring back underneath a HAT where space is at a premium but you don't want to solder wires directly onto your precious boards.

These 40-pin long headers, 0.1" pitch, can be stacked next to each other on a 0.1" grid and broken apart easily with pliers or diagonal cutters.

Features:
Number of pins - 2 x 20
Male/Male (standard)
Contact resistance - Max 20 mΩ
Nominal current - 3 A
Spacing - 2.54mm (0.1")
Length - 91.4mm
Width - 5.0mm
Height - 10.8mm

Package Includes:
1 x Male Right-Angle 40-pin Header

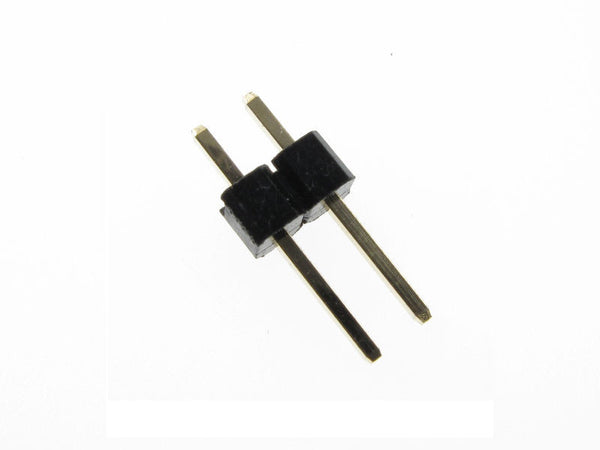

2 x 2 pin for reset switch & TV

Raspberry Pi is a Trademark of the Raspberry Pi Foundation

Product ID: EP00426
