40 Pin GPIO 2x20 Female Header AND 40 Male PINS for Raspberry Pi Zero

£1.80
40 Pin GPIO 2x20 Female Header AND 40 Male PINS for Raspberry Pi Zero

You have a choice of either the standard GPIO male header as found on normal raspberry Pi's or a 40 pin female header.  Soilder either the female header or the male header to your Pi Zero so you can interact with the GPIOs.

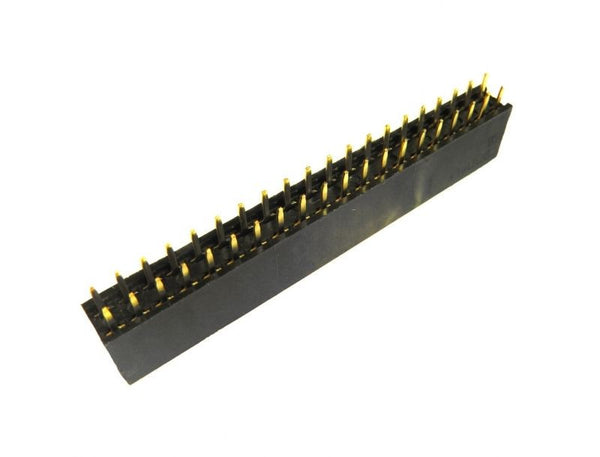

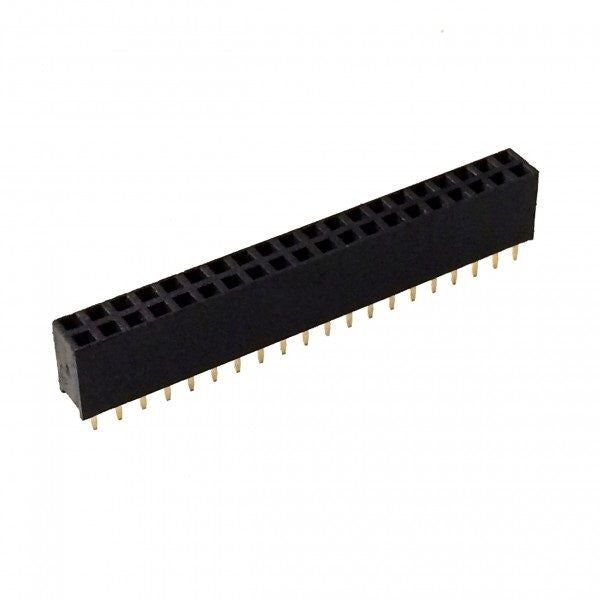

The 2x20 40 Pin Female Header gives you 2 rows of 20 female header pins all neatly spaced. This can be used to convert your Raspberry Pi 2, A+ or B+ GPIO pins from male to female so it's easy to plug wires into the board directly. Also commonly used to make your own Raspberry Pi extension boards as it mates perfectly with the Raspberry Pi's GPIO headers. Breadboard & Perfboard compatible.

Specifications:
Number of pins: 40
2 Rows x 20 columns
Spacing: 0.01" (2.54mm)
Receptacle style: square
Receptacle Depth: ~0.24" (6mm)
Fully Tested on the Raspberry Pi Zero

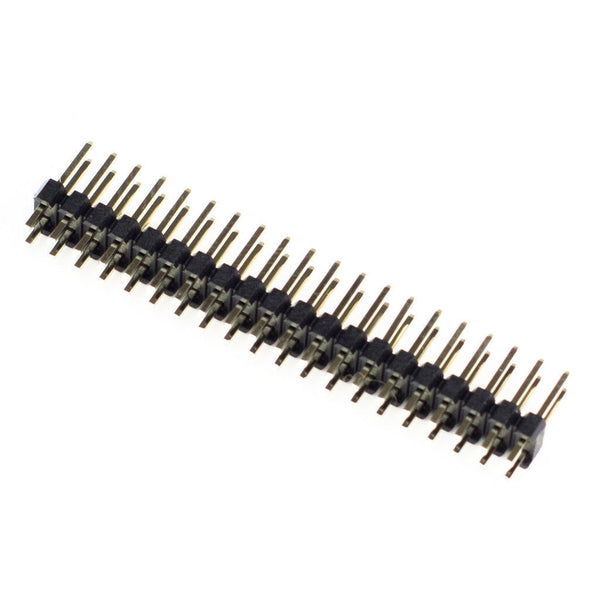

20 pin (20 pins per row x 1 row) straight male connector
2.54mm spacing

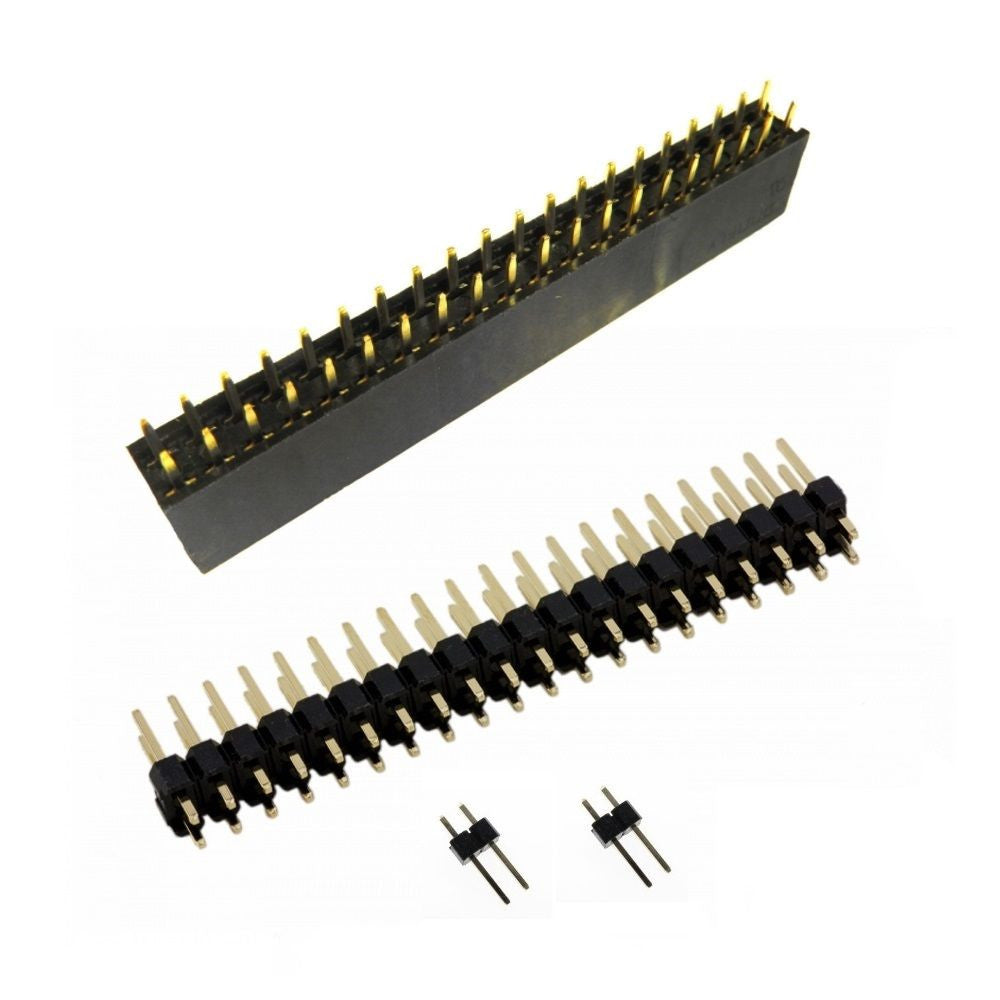

Package Includes:
1 x 40 pin Header Extender
1 x 2x20 pin (20 pins per row) straight male connectors

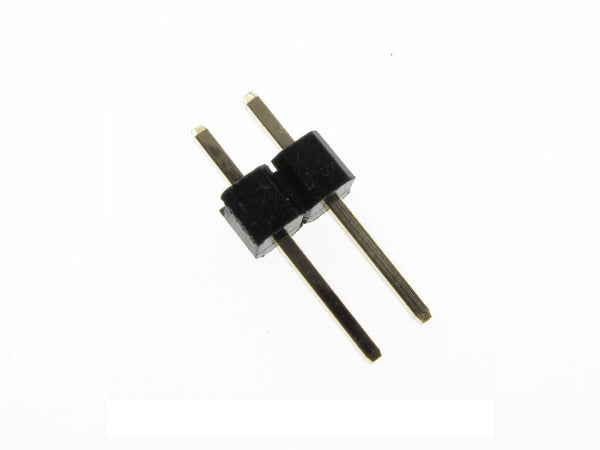

2 x 2 pins for reset switch / TV

Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00275
