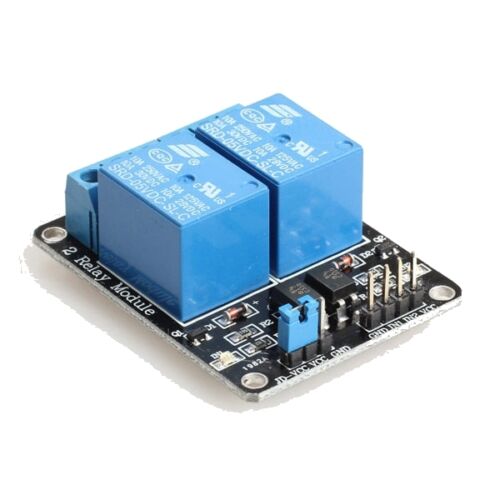

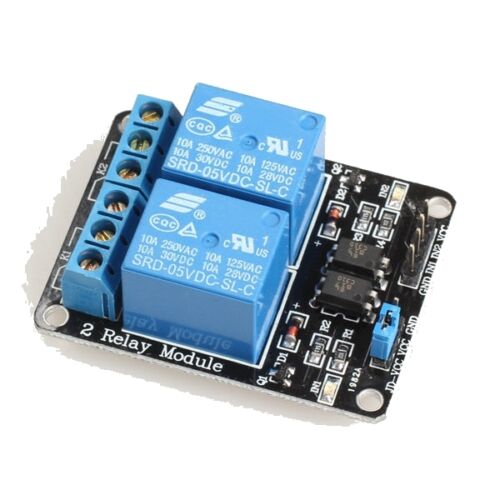

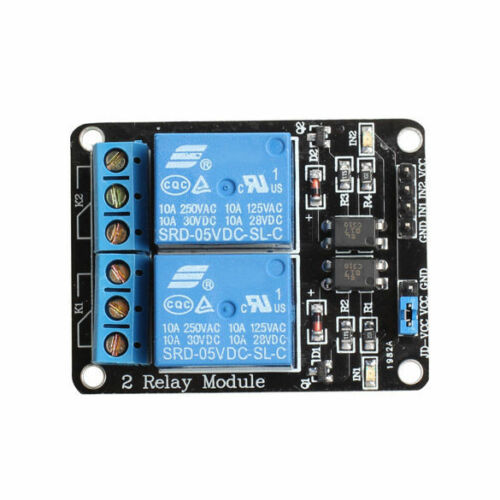

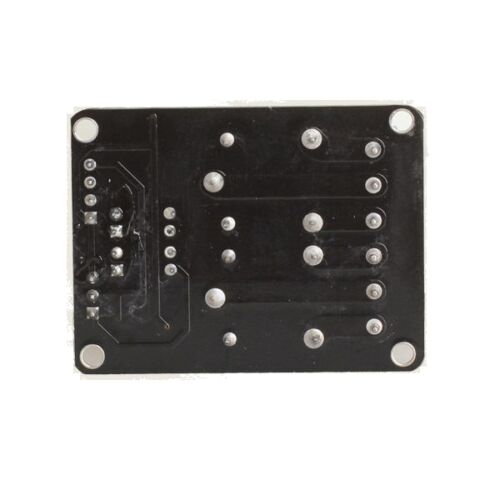

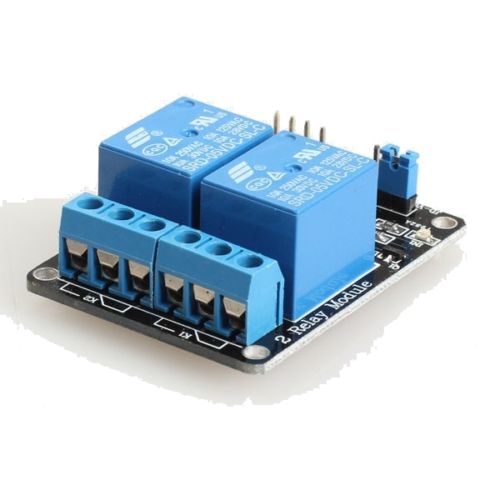

2 Two Channel 5v Relay Module Board LED For Arduino PIC ARM DSP AVR Electronic

£3.25
2 Two Channel 5v Relay Module Board LED For Arduino PIC ARM DSP AVR Electronic

Microcontroller (Arduino, 8051,  AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
5V 2-Channel Relay interface board, and each one needs 15-20mA Driver Current
Equiped with high-current relay, AC250V 10A ; DC30V 10A
Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
Indication LED’s for Relay output status.

Description:
Module with pine le relay control, ac voltage maximum 250 V, ac current maximum 10 A, dc voltage maximum 30 V, dc current maximum 10 A;
The 8550 transistor drive, drive ability;
Working voltage 5 V
Has the fixed bolt hole and easy installation
Power indicator (green), Two ways of relay status indicator light (red)

Module interface specifications (6 wire)
1. VCC external 5 V
2. GND external GND
3. 1N1-1N2 interchange relay control interface by single chip IO

Using a large current relay, AC250V 10A DC30V 10A
Contact some independent wiring, safe and reliable
Standard interface that can be extended in a variety of development board
With fixed screw holes for easy installation
Suitable for a variety of platforms 51/AVR/AVR/ARM
Size( L x W x H ): 54mm x 47mm x 18mm

Package Included:
1 x Two Channel Relay Module


Raspberry Pi is a Trademark of the Raspberry Pi Foundation.
Product ID: EP093
