2.4 Inch 2.4" TFT LCD Screen Touch Panel Module TF Micro SD For Pi Arduino PEN

£6.50
2.4 Inch 2.4" TFT LCD Screen Touch Panel Module TF Micro SD For Raspberry Pi  Arduino + Touch Pen

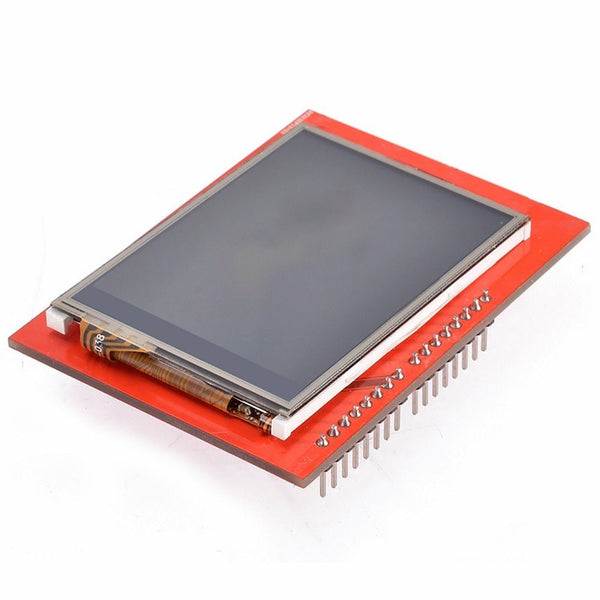

2.4" TFT LCD Shield Touch Panel Display for Arduino
it does not work with arduino mega,thanks

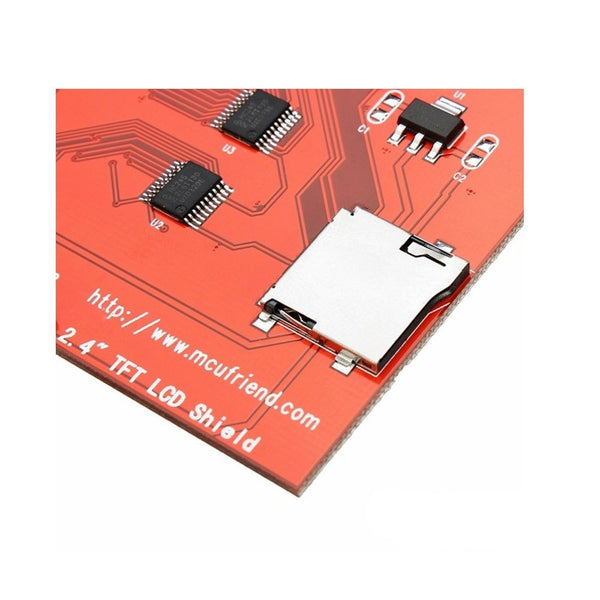

With a beautiful large touch screen display shield having built-in micro SD card connection, Arduino project can be more easy and fun. 240x320 pixels with individual pixel control, it has way more resolution than a black and white 128x64 display.You can detect finger presses anywhere on the screen since it has a resistive touch screen attached to it.
Works best with any classic Arduino (UNO/Duemilanove/Diecimila). This shield does NOT work with the Mega Arduinos but its going to be half the speed of the Uno-type boards because of the way the Mega rearranges all the pins (there is no way to get around this!) This shield is not Leonardo-compatible

Features:
2.4" diagonal LCD TFT display
Bright, 4 white-LED back light, on by default but you can connect the transistor to a digital pin for back light control
Colourful, 18-bit 262,000 different shades
4-wire resistive touch screen
240x320 resolution
spfd5408 controller with built in video RAM buffer
8 bit digital interface, plus 4 control lines

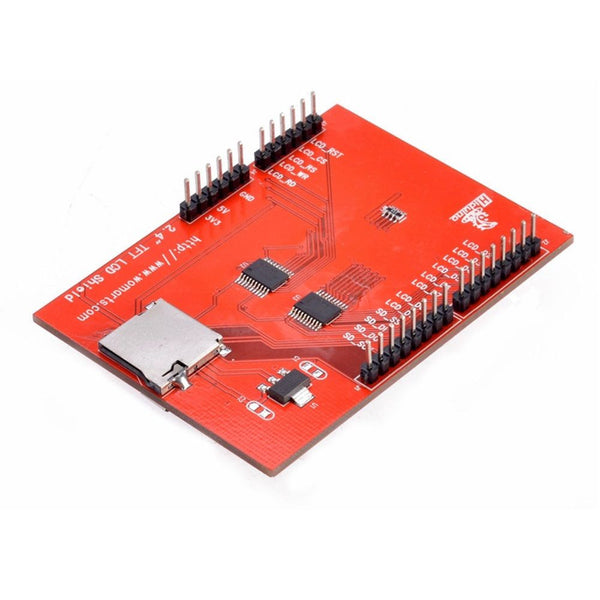

Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analogue 4 and 5. Pin 12 is available if not using the micro SD
5V compatible, use with 3.3V or 5V logic
Onboard 3.3V @ 300mA LDO regulator
Size: 71 x 52 x 7mm
Weight: about 31g


Package Content:

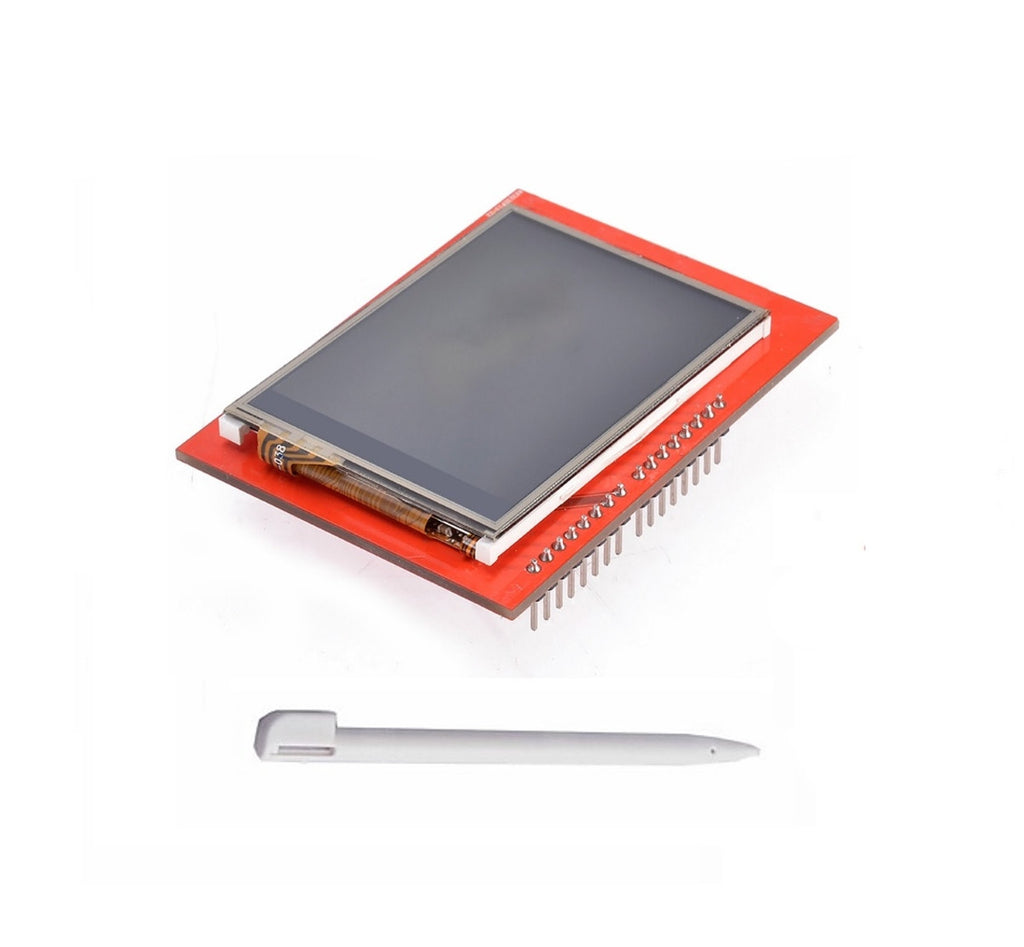

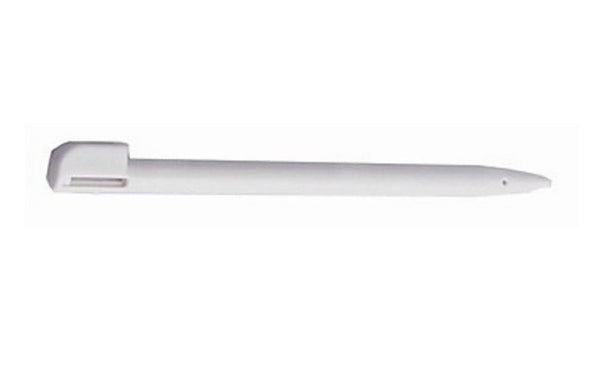

1 x  2.4" TFT LCD Screen + Touch Pen
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP077
