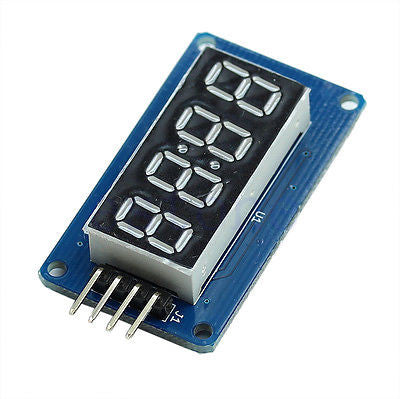

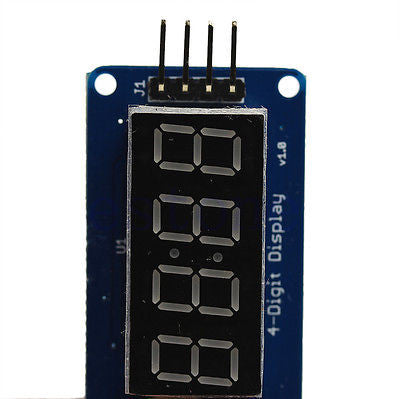

4 Bits Digital Tube LED Display Module Clock for Arduino Raspberry Pi

£3.50
4 Bits Digital Tube LED Display Module With Clock Display for Arduino Raspberry Pi

Model: YL-2
Working voltage: 3.3V-5V
Drive:8550 transistor parallel drive
Dimension: 47 x 20 x 10mm/ 1.85" x 0.79" x 0.4" (L*W*H)

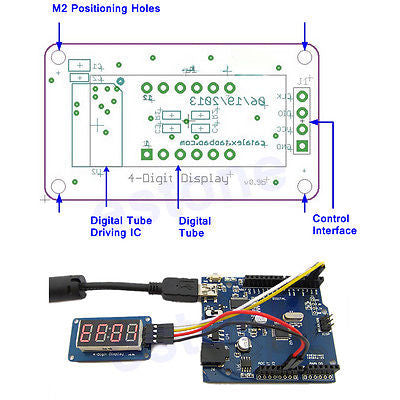

Interface Description
1 VCC external 3.3V-5V voltage ( can be directly connected to 5v microcontroller and 3.3v MCU )
2 ABCDEFGH segment drive directly connected with the microcontroller IO port
3 drive D1 D2 D3 D4 directly connected with the microcontroller IO port
Note: The module can be directly connected with the microcontroller IO port ( requires 12 -channel IO ports ) ,
to achieve control four digital tube display purposes, does not require any driver or buffer.

Package Content:
1 x 4 Bit LED Display Module



Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00126
