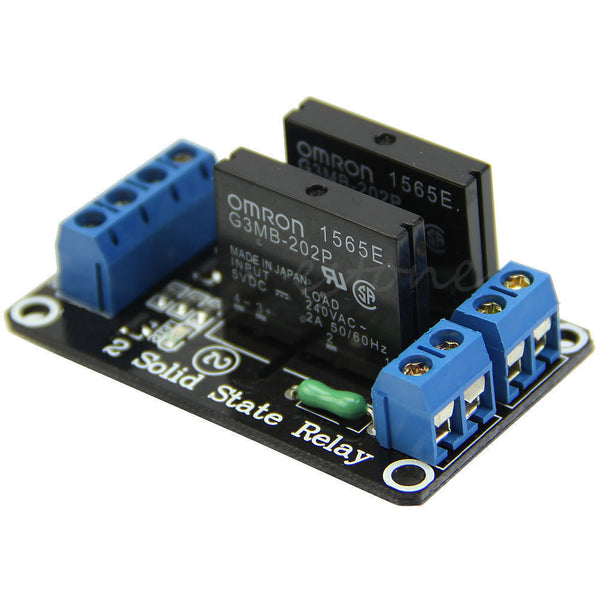

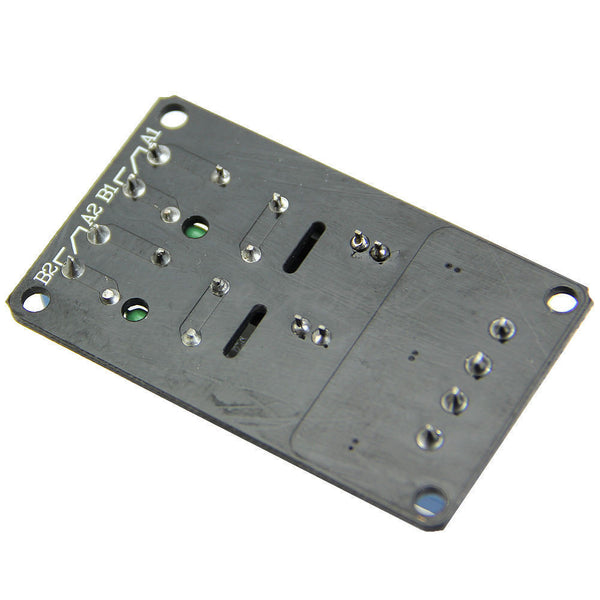

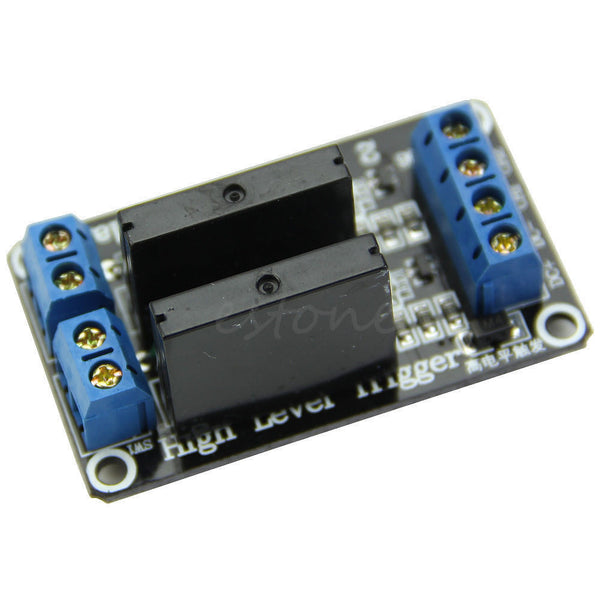

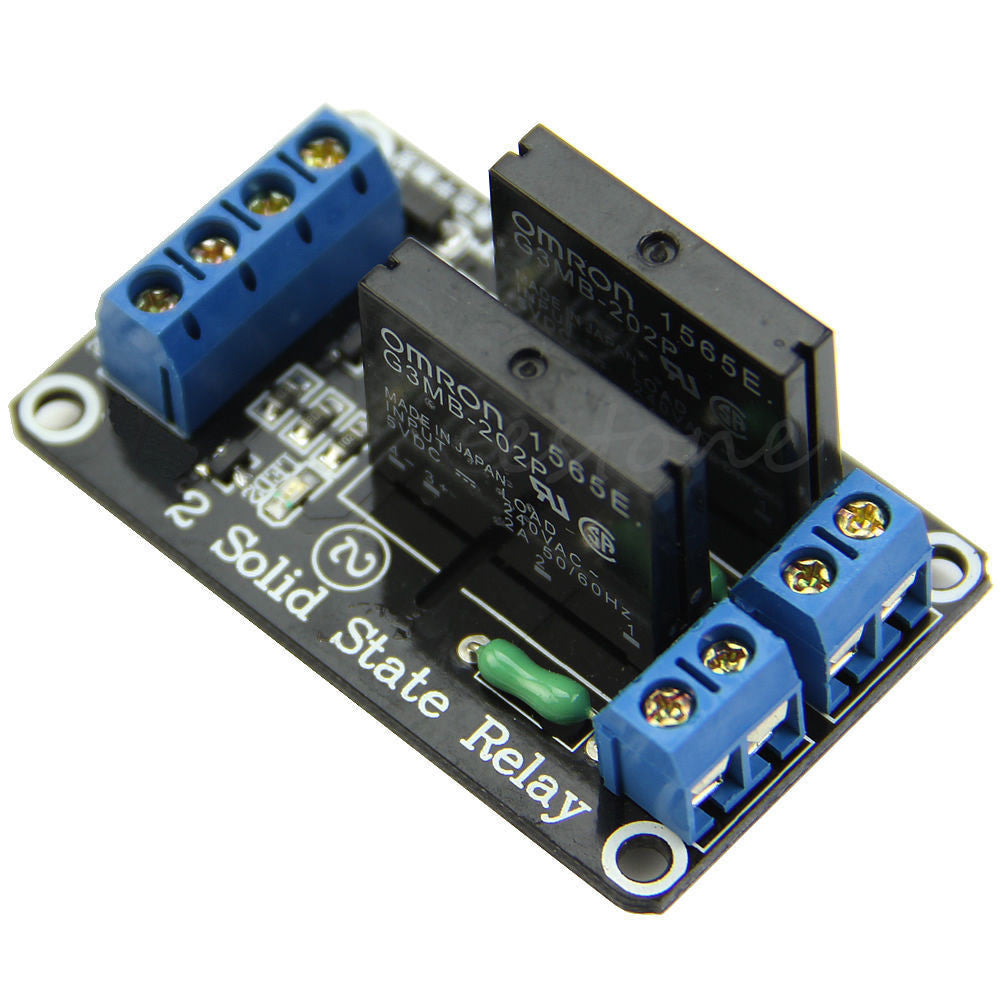

5V 2 Channel Solid State Relay module for Arduino Raspberry Pi

£4.50
5V 2 Channel Solid State Relay module for Arduino Raspberry Pi

5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A
Description:
Size: 53*32*23mm/2.08*1.31*0.9"
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3.3-5V state high relay ON)

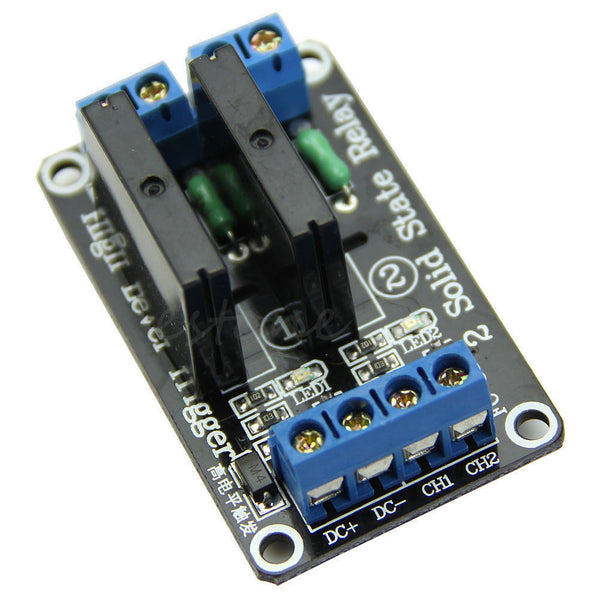

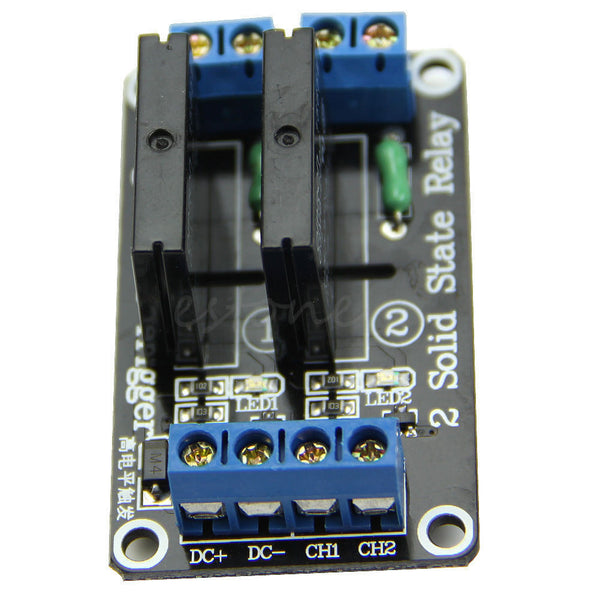

Module interface:
Input section:

DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)

Voltage version    static current    working current    trigger voltage    trigger current
   1 road 5V               0mA                12.5mA                 3.3-5V              2mA
   2 road 5V               0mA                22.5mA                 3.3-5V              2mA



Package Includes:
1 x 2 Channel Solid State Relay Module

Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00343
