5V 8 Channel Solid State Relay module for Arduino Raspberry Pi

£17.90

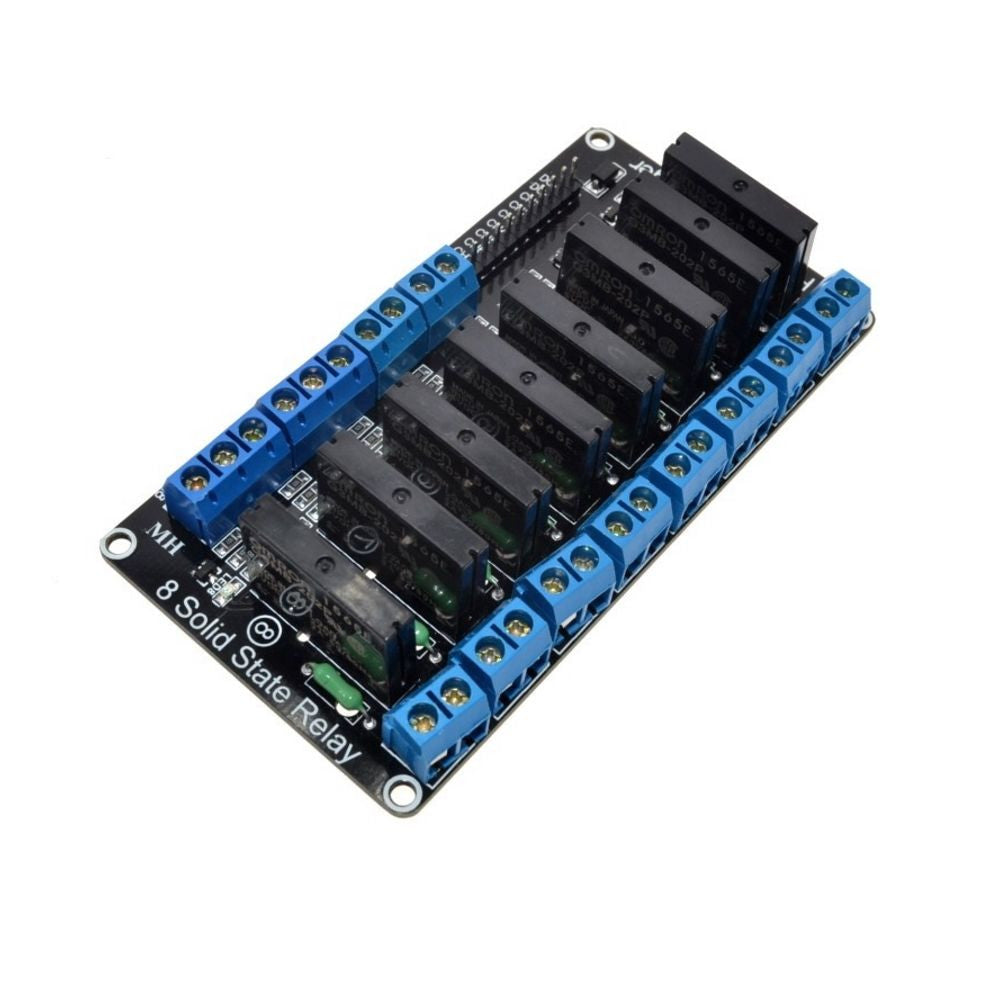

5V 8 Channel Solid State Relay module for Arduino Raspberry Pi
Compares with the traditional mechanical relay, the Solid State Relay (SSR) has many advantages: it has a longer life, with a much higher turn on/off speed and no noise. Besides, it also has better resistance to vibration and mechanical shock, and better moisture proof performance.

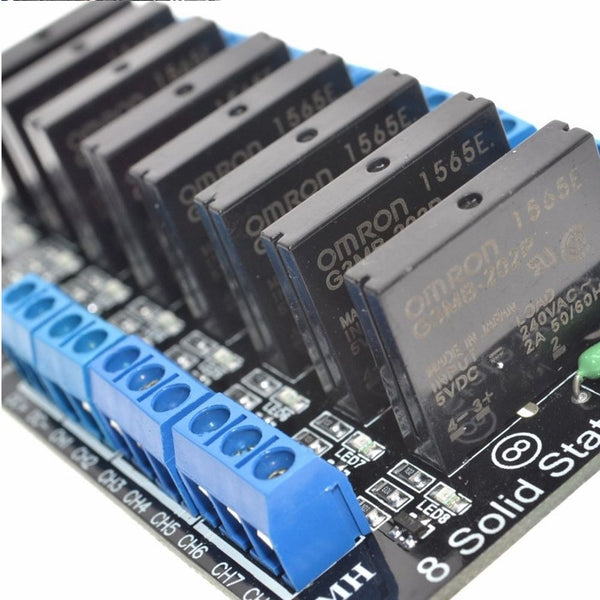

This Solid State Relay Module is based on Omron G3MB, to control current upto 2A@240VAC, can be widely used in various areas such as computer peripheral interfaces, temperature/speed light adjustment, servo control, petrochemical, medical instrumentations, financial devices, coal, meters, traffic signals, etc.

Features
Control Voltage:5V
Static Current:0mA
Working Current:12.5mA
Trigger Voltage:0-1.5V
Trigger Current:2mA

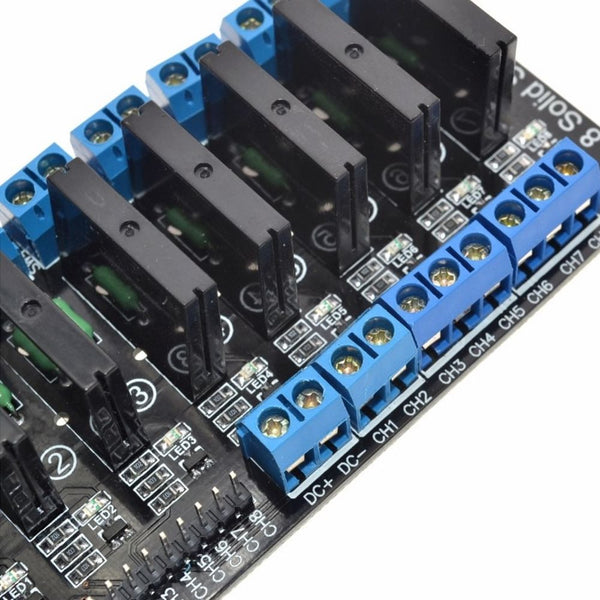

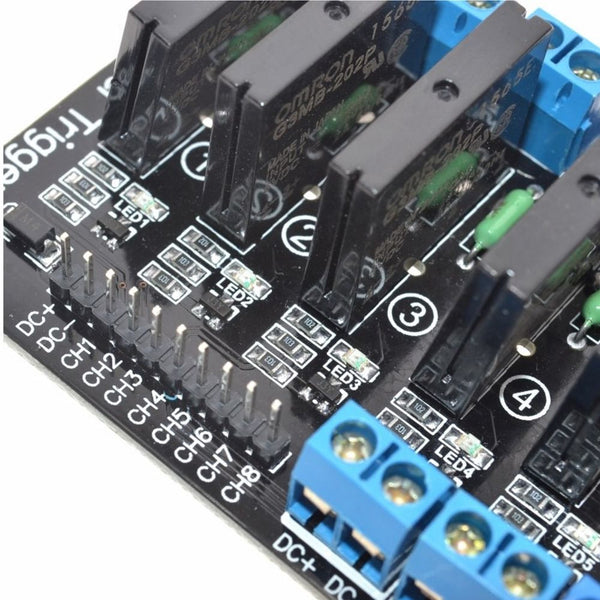

Instructions
DC+:Connect power positive
DC-:Connect power negative
CH:Relay module signal trigger end(Low level trigger is effective)
Wiring: When the triggered by low voltage, current will get through.

Package Includes:
1 x 8 Channel Solid State Relay Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00454
