2 x High Sensitivity Water Sensor for Raspberry Pi Arduino NEW

£2.90

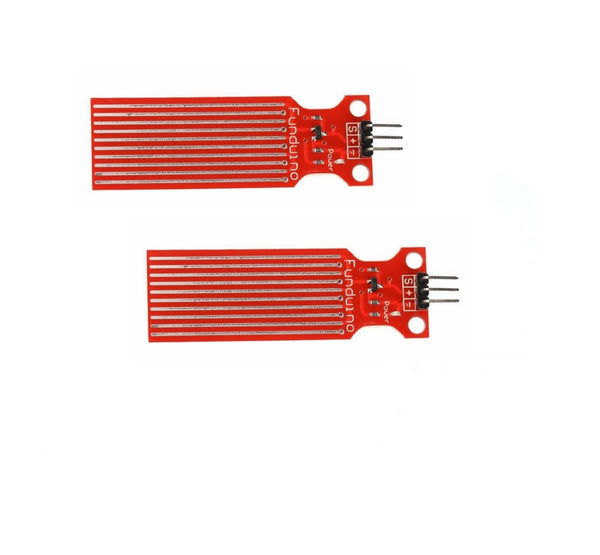

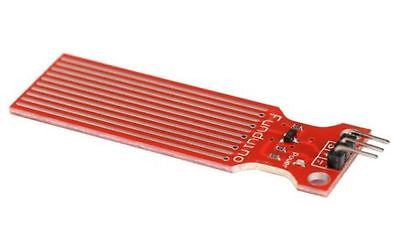

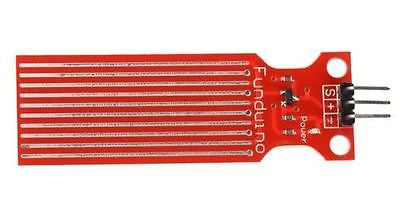

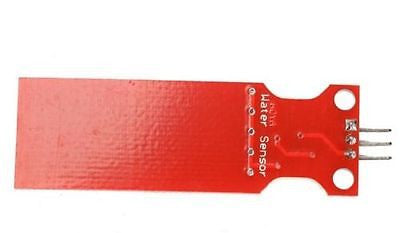

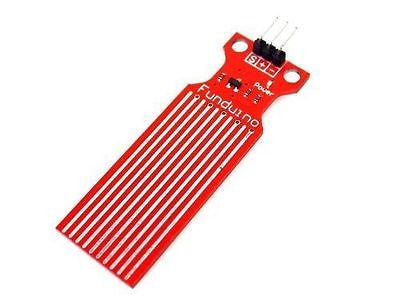

2 x High Sensitivity Water Sensor Raspberry Pi Arduino Compatible

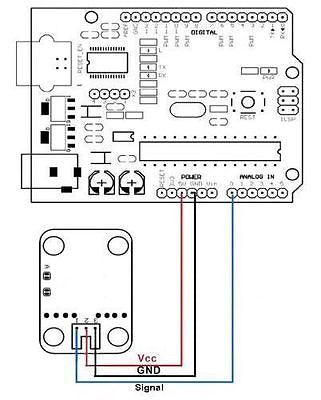

The water sensor  is a  easy to use, simple cost effective high level/drop recognition sensor, which is obtained by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level. Easy to complete water to analogue signal conversion and output analogue values can be directly read from Arduino development board or a Raspberry Pi to achieve the level alarm effect.


Operating voltage: DC3-5V
Operating current: less than 20mA
Sensor Type: Analogue
Detection Area: 40mm x 16mm
Production process: FR4 double-sided HASL
Operating temperature: 10℃-30℃
Humidity: 10% -90% non-condensing
Product Dimensions: approx. 62mm x 20mm x 8mm (LxWxH)


Package Includes:
2 x Water Sensor Module (no instructions or data sheets are included)

Product ID: EP001
