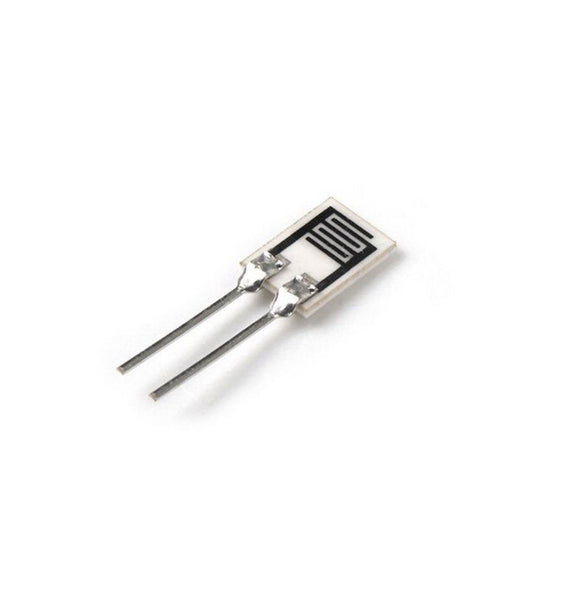

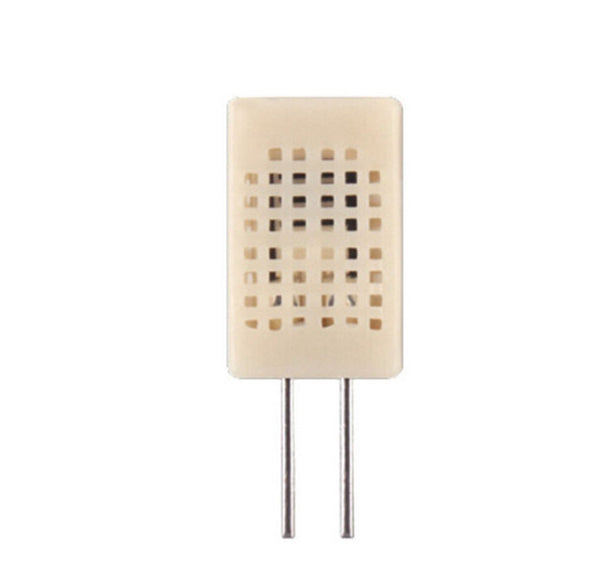

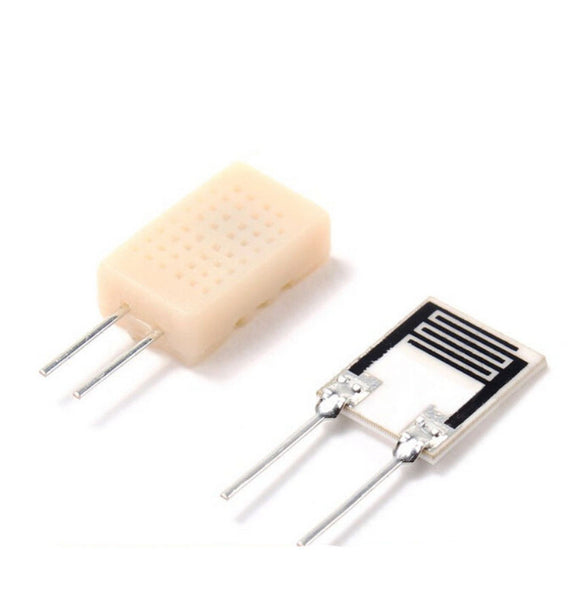

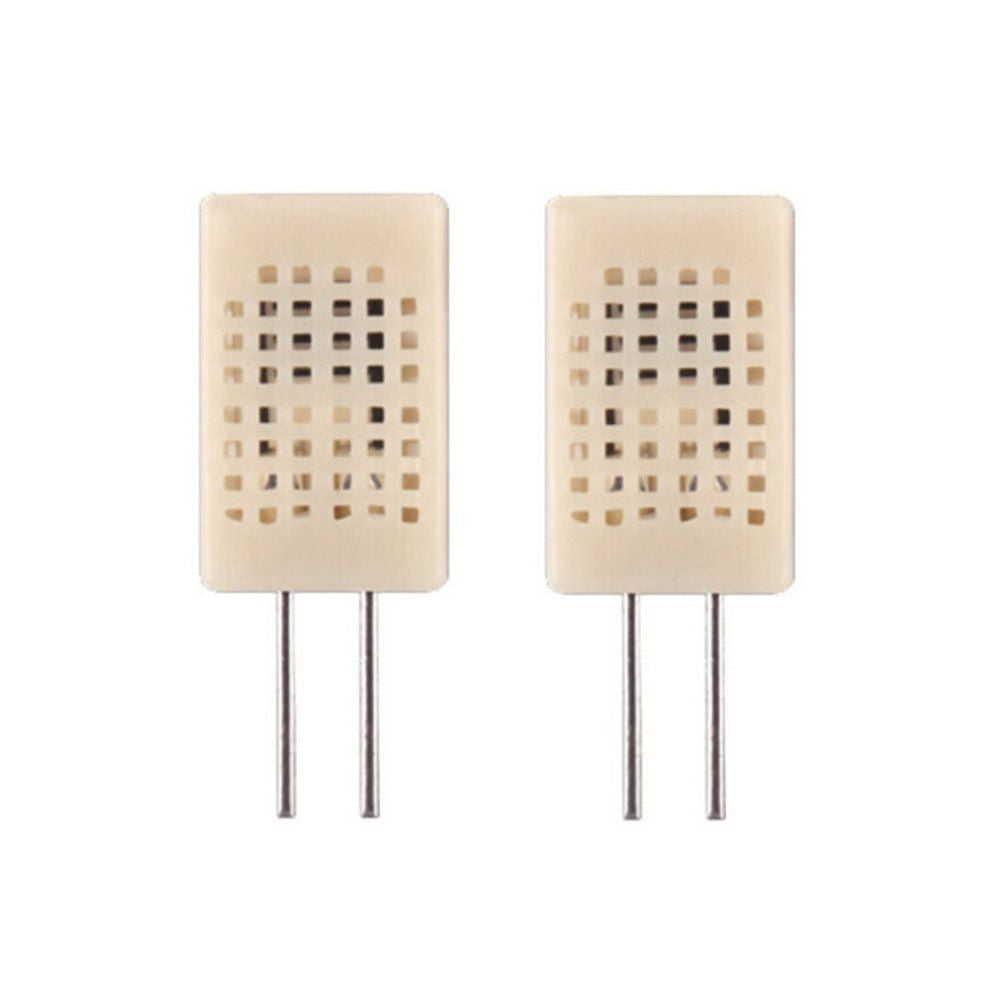

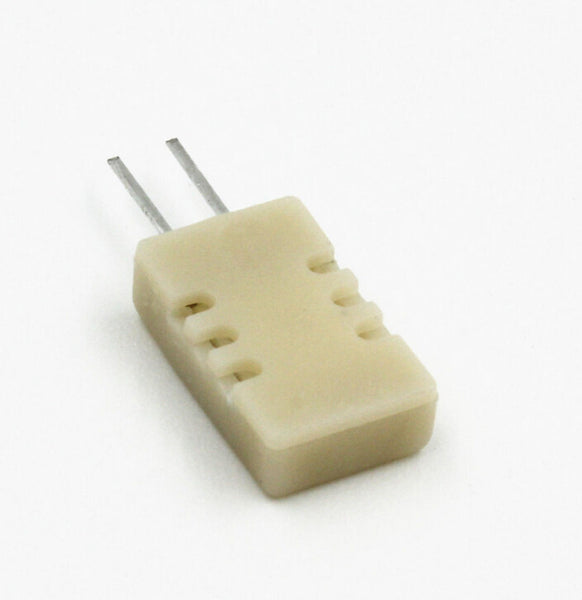

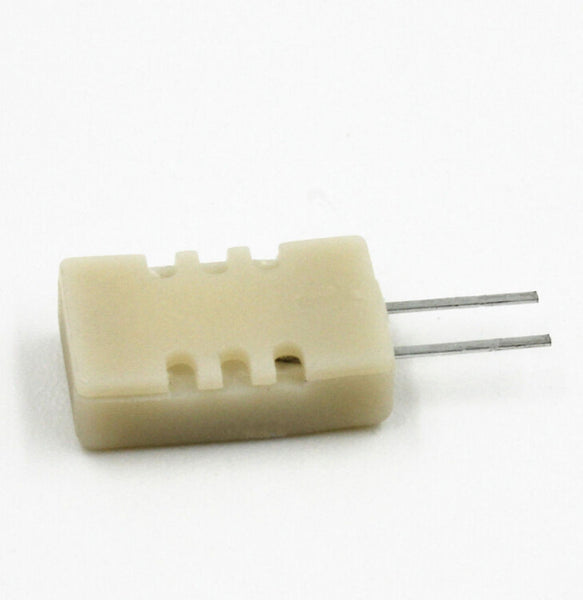

2pcs HR202L Humidity Resistance Sensor Module WITH Case

£2.75
2pcs HR202L Humidity Resistance Sensor Module WITH Case

HR202 humidity resistance is the use of organic polymer materials of a new humidity sensor, humidity sensing range, stable performance, long-term use, can be applied to warehousing, cars, indoor air quality control, building automation, medical, industrial control systems and wide range of applications such as scientific research.

Parameters
Fixed Voltage: 1.5V AC (MAX, sine wave)
Fixed Power: 0.2mW (MAX, sine wave)
Operating frequency: 500Hz-2kHz
Temperature :0-60 ¡æ
Humidity: 95% RH or less (non-condensing)
Delay Backlash: ¡Ü 2% RH
Affect the time: moisture, ¡Ü 20S: de Wet ¡Ü 40S
Stability: ¡Ü 1% RH / Year
Humidity detection accuracy: ¡Ü ¡À 5% RH
Relative Humidity
Conditions: at25 ¡æ 1kHz 1V AC (sine wave)
Humidity: 60% RH
Center value: 31K¦¸
Impedance values range :19.8-50 .2 K¦¸
Humidity detection accuracy: ¡À 5% RH

Package Content:
2 x HR202L Humidity Resistance Sensor Module


Raspberry Pi is a Trademark of the Raspberry Pi Foundation

Product ID: EP00386
