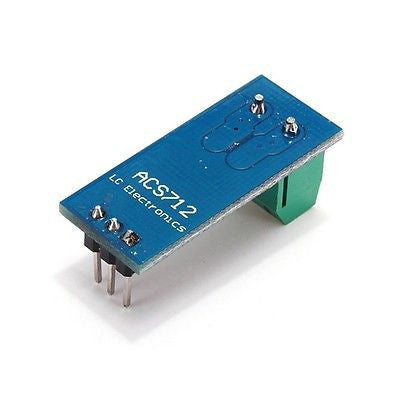

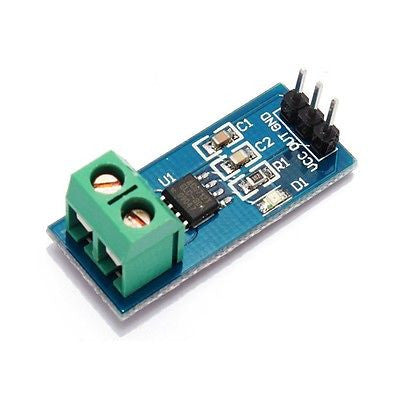

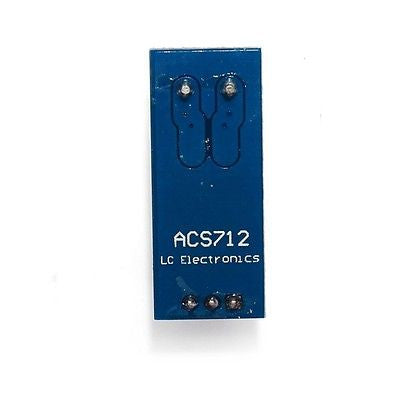

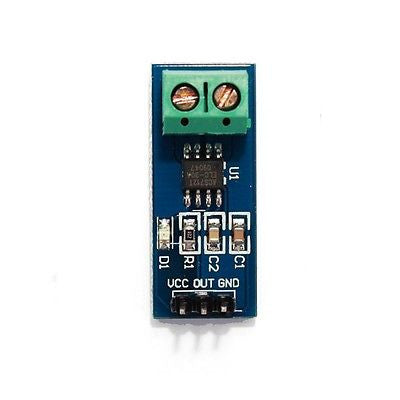

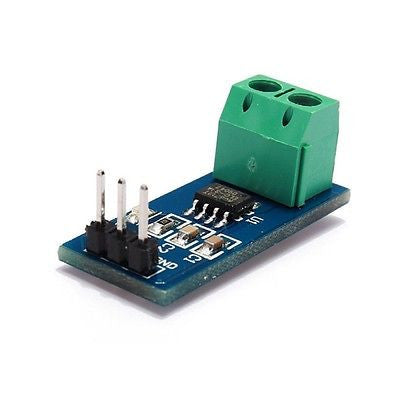

20A ACS712 Hall Current Sensor Module for Raspberry Pi Arduino NEW

£2.90
20A Hall Current Sensor Module ACS712 for Raspberry Pi Arduino NEW

Fully Integrated, Hall Effect-Based Linear Current Sensor Module with 2.1 kVRMS Isolation and a Low-Resistance Current Conductor.

Features:
Module can measure the positive and negative 20 amps
5.0 V, single supply operation.
Output voltage proportional to AC or DC currents
On-board power indicator
Nearly zero magnetic hysteresis
Factory-trimmed for accuracy
Extremely stable output offset voltage


Technical Specifications:
Output Voltage: Analog output 66mV / A
Operating Voltage Range: 4.5V ~ 5.5V
No Current Output voltage is: VCC / 2
PCB board size: 31 (mm) x14 (mm)
5 μs output rise time in response to step input current
80 kHz bandwidth
Total output error 1.5% at TA = 25°C
1.2 mΩ internal conductor resistance
2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
66 to 185 mV/A output sensitivity




Package include:
1 x ACS712 module 20A Current Sensor Module



Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00246
