4-Channel Infrared IR Line Tracking Sensor Module for Raspberry Pi Arduino

£2.90
4-Channel Infrared Line Tracking Sensor Module for Raspberry Pi Arduino

Features:
Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: - 10oC - +50oC
Mounting aperture: M3 screws
Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
Size: in the control panel of 42mm x 38mm x 12mm (length * width * height)

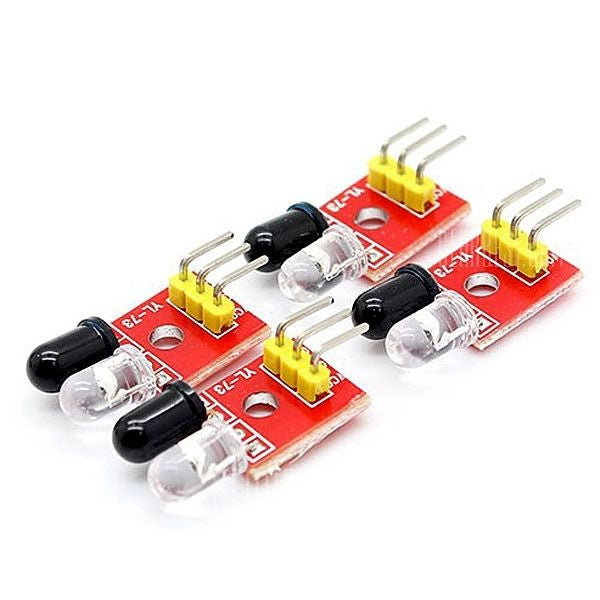

Small forward 25mm x 12mm x 12mm (length x width x height)
Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)


A Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing .
Smart car to avoid the cliff , anti- fall.
Smart car to avoid obstacles

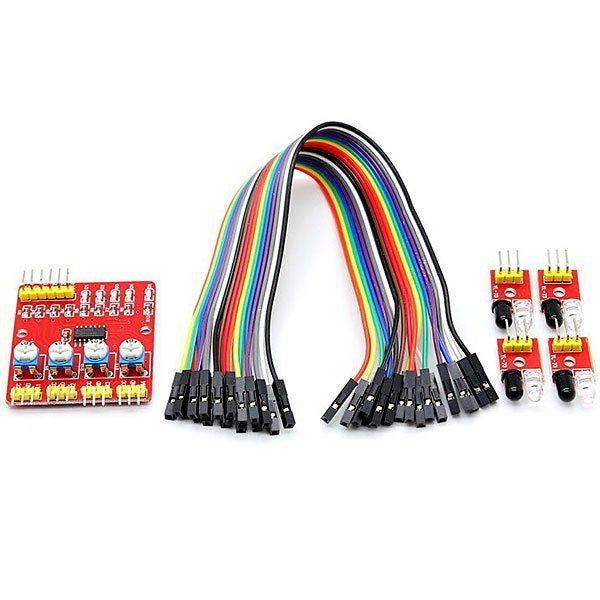

Package content:

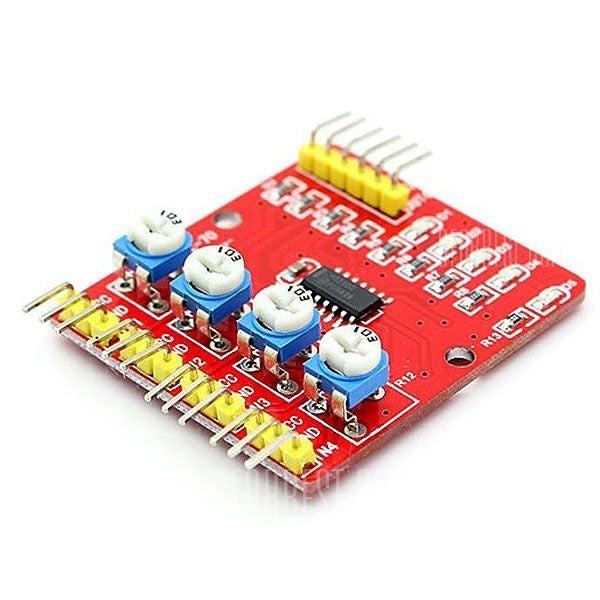

1 X Tracking Module (Hollow Board + Small Plate Forward)
12 X Male to Male Dupont Lines


Package Content:
1 X Tracking Module (Hollow Board + Small Plate Forward)
12 X Male to Male Dupont Lines


Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00221
